Technical Guide for Co-owned experience

This guide explains how to integrate Bettermile's real-time tracking widget into your website. By embedding the widget, you can create a co-branded tracking experience while leveraging Bettermile's advanced real-time tracking capabilities:

Frontend Integration: Embed via iframe or JavaScript.
Customizable: Adapt language, color scheme, and style. Contact Bettermile for support with customization.
Controlled Access: Display the widget only for parcels with real-time tracking availability.

Integration Steps

Determine Availability: Check when a parcel becomes trackable and enable the widget. Two integration options are available:
- Pull Approach: Use the Availability API to check when real-time tracking becomes available (see the sequence diagram below).
- Push Approach: Automatically receive parcel availability updates in your backend via webhook.
Conditional Widget Display: Display the widget only when trackingID availability status is true. For parcels not yet trackable, show their current status (e.g., "Ready for delivery at depot"). A detailed integration guide is available on the Better Tracking Widget page.
Secure Access: Either by
- Configuring a proxy endpoint under your domain to forward widget requests to the tracking endpointor
- Cross-Origin Resource Sharing (CORS). Contact Bettermile to whitelist the domains of your host website. Note that this may expose Bettermile to potential Cross-Site Scripting (XSS) vulnerabilities on your domain. Therefore, we recommend using the proxy option instead.

Sequence Diagram

The Better Tracking Widget allows you to embed the bettermile tracking experience into your website for tours driven with Better Route.

The Widget can be integrated in one of two ways. Via an iframe integration or using an Javascript library.

Authorization

In order to have access from the widget to the tracking API the testing and production domain need to be whitelisted.

Implementation

Iframe


<iframe width="400" height="800" src="https://gls-rtt.com/widget.html?disable5StarRating=1#/gls-de/de/534340433"></iframe>

Javascript SDK


<html>
<head>
    <script type='module'
            src="https://gls-rtt.com/widget.js?containerId=trackingContainer&disableFromAddress=1#/gls-it/en/5/12345">
    </script>
    <link rel="stylesheet" href="https://gls-rtt.com/assets/style.css">
</head>
<body>
<div id="trackingContainer"></div>
</body>
</html>

or render programmatically once the script is loaded or when some event has occurred:


<html>
<head>
    <script type='module'
            src="https://gls-rtt.com/widget.js?autoRender=false"
            onload="window.betterTracking.render('/gls-de/en/534340433/12121', {containerId: 'myContainerId1', disableFromAddress: 1})">
    </script>
    <link rel="stylesheet" href="https://gls-rtt.com/assets/style.css">
</head>
<body>
<div style='max-height: 400px' id="myContainerId1"></div>
<div style='max-height: 400px' id="myContainerId2"></div>

<script type='module'>
    setTimeout(() => {
        window.betterTracking.render('/gls-at/de-AT/12334566/10115', {
            containerId: 'myContainerId2',
            disableFromAddress: 1,
            disableToAddress: 1
        });
    }, 10000);
</script>
</body>
</html>

URL Structure (1st function parameter)

Uses the url structure of the gls rtt page: /{tenant-id}/{locale}/{parcelNumber|trackingId|internalId}[/{postcode}] The postcode is optional.

The locale parameter uses the IETF language tag format, which is a lowercase language code, followed by an optional region (usually a two letter ISO country code), separated by a dash. For example: en, en-US, de, de-AT.

Parameters

In Iframe mode you have to pass a hash string and query parameters. In Js Library Mode you pass the hash string as first parameter and the query parameters as object in the second function parameter.

Parameters visualized

Widget view at estimated 5 stops before delivery:

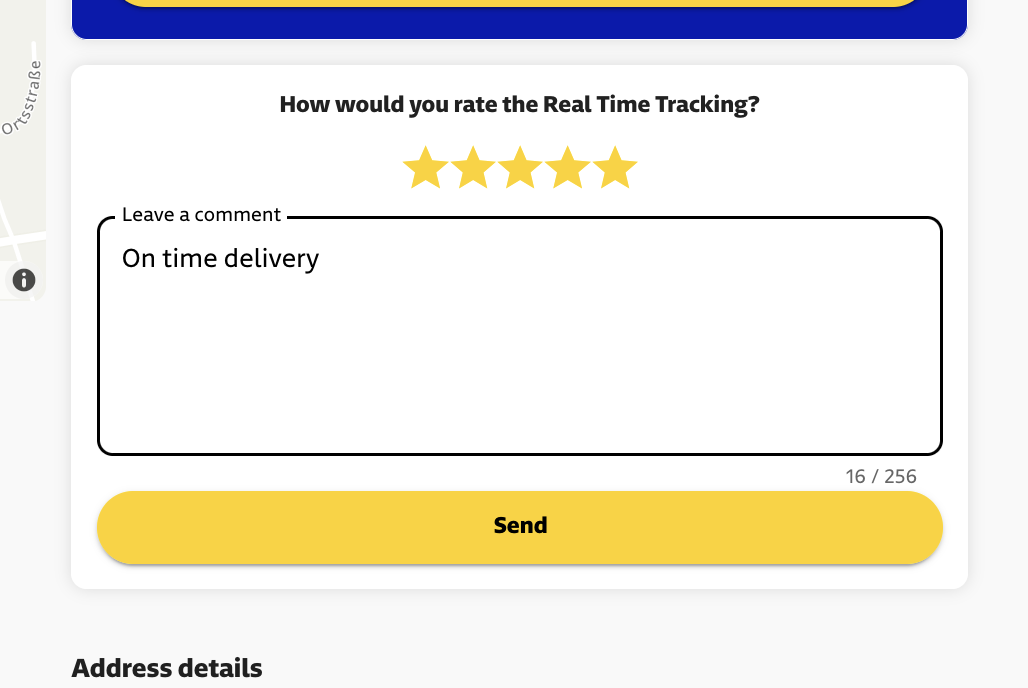

Rating Box on Delivered State (disable5StarRating):

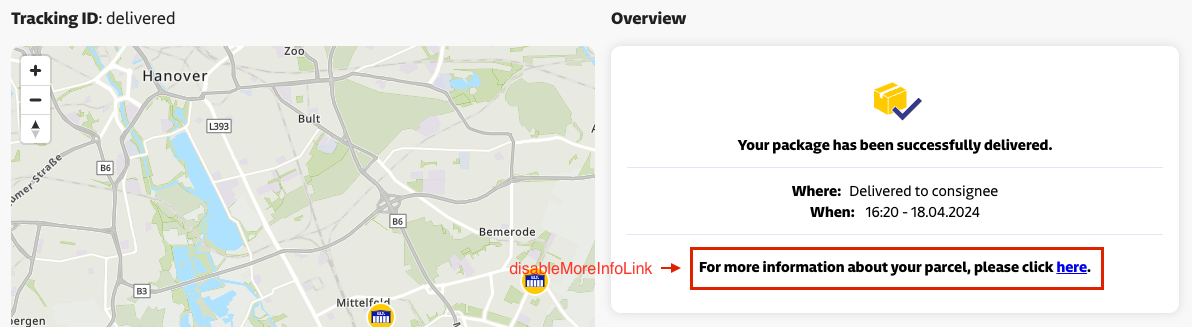

Widget view when parcel has been delivered:

Query Params (2nd function parameter)

Name	Type*	Default	Description
autoRender	boolean	true	defines if the vue application should be rendered on startup
containerId	string	rtt	defines in which element the vue application should be rendered into
disable5StarRating	boolean	false	defines if the rating component should be shown
postCodeTextInput	boolean	false	defines if the postcode can contain alphanumerical characters
disableDepositPermission	boolean	false	do not render deposit permission button / dialog
disableDeliverToNeighbour	boolean	false	do not render "deliver to neighbour" button / dialog
disableFromAddress	boolean	false	do not render fromAddress
disableToAddress	boolean	false	do not render toAddress
disableOverview	boolean	false	do not render the overview, only the map
gdprApproved	boolean	false	do not prompt for gdpr approval
disableMoreInfoLink	boolean	false	do not show the link for more info, when delivered
trackingApiUrl	string		API URL for the tracking data

All query params are optional
